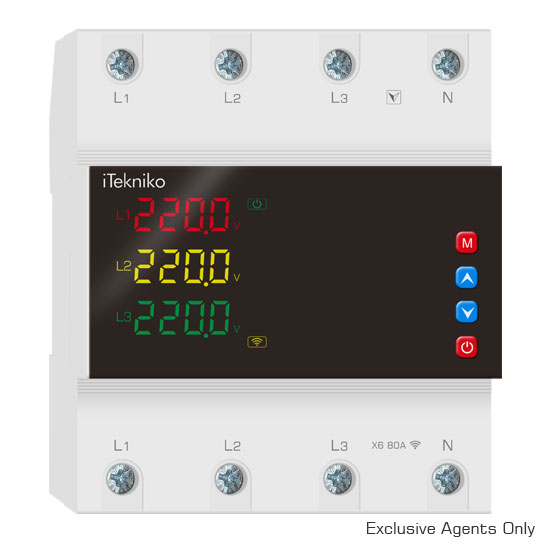

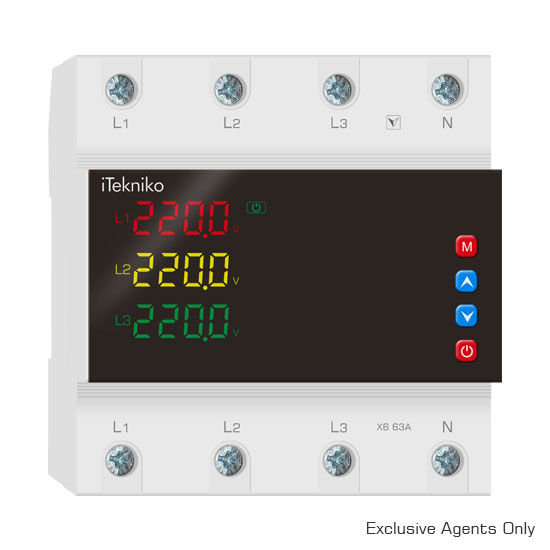

Description

X6 series auto-reconnect adjustable voltage protector provides the protections of over-voltage, under-voltage, over-temperature, phase sequence and voltage asymmetry, with the advantages of true RMS, steady-state circuit, long service life, wide application voltage, fast response speed, strong anti-interference ability (EMC passed), color digital display and adjustable parameters by adopting the advanced micro-controller and non-valotile memory, the powerful algorithm, the high-quality components and the patent-protected overall design, widely used in various environments such as household, commercial and industrial.

Specification

Model code: X6 63/80A

Working voltage: 60-450V(L-N), 110-780V(L-L) AC

Rated frequency: 45-60Hz

Rated current: 63A (Max 90A), 80A (Max 100A)

Password: 0000-9999 (Default 0000)

Power on delay time: 1-600S (Default 10S)

Use mode: SPN (Single phase) / TPN (Three phase) (Default TPN)

Over-voltage protection range: 230-300V (Default 255V) / 125-180V (Default 140V)

Over-voltage off delay time: 0.1-30.0S (Default 0.1S); >350V, <0.03S / >210S, <0.03S

Under-voltage protection range: 140-210V (Default 175V) / 80-105V (Default 90V)

Under-voltage off delay time: 0.1-30.0S (Default 0.1S); <120V, <0.03S / <70V, <0.03S

Voltage asymmetry: 20-99V (Default 20V)

Phase sequence protection switch: ON/OFF (Default OFF), <0.03S

Option: Wi-Fi, Bluetooth, Zigbee, etc.

Power consumption: <2VA

Electro-mechanical life: 100,000 cycles

Ambient temperature: -25°C-65°C

Altitude: <2000M

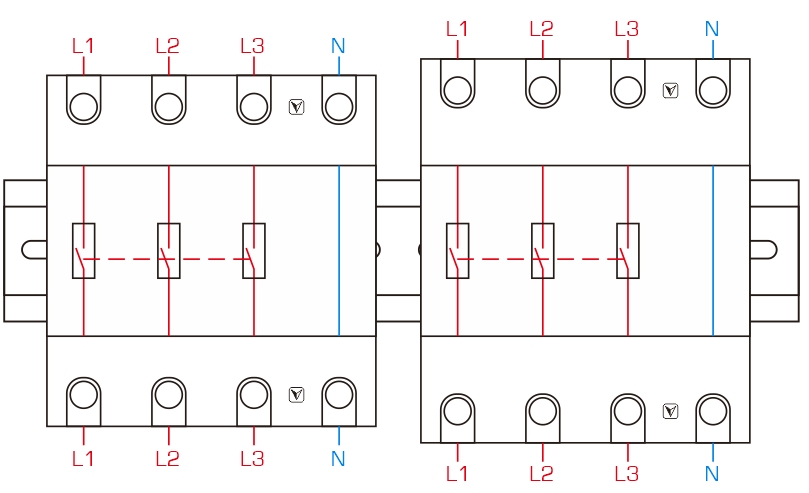

Wiring Diagram & Installation

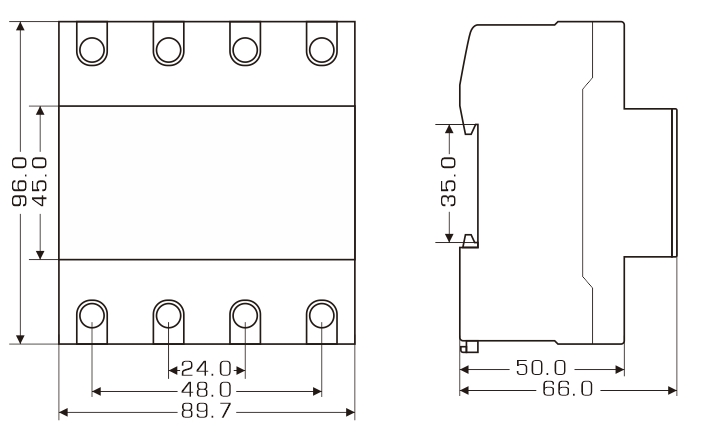

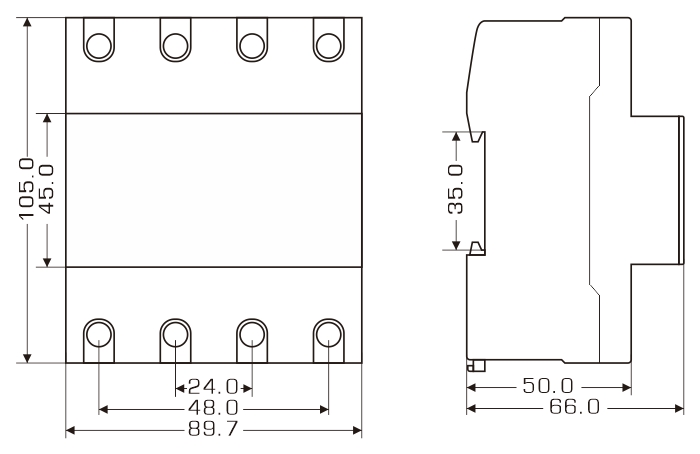

Overall Dimensions
