Description

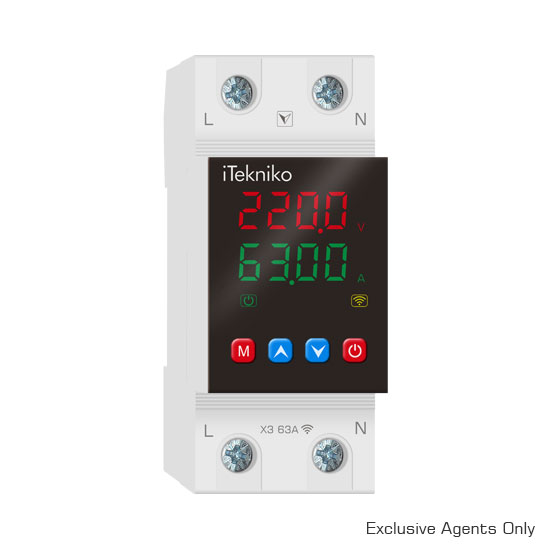

X3 series auto-reconnect adjustable voltage current protector provides the protections of over-voltage, under-voltage, over-current and over-temperature, with the advantages of true RMS, steady-state circuit, long service life, wide application voltage, fast response speed, strong anti-interference ability (EMC passed), color digital display and adjustable parameters by adopting the advanced micro-controller and non-valotile memory, the powerful algorithm, the high-quality components and the patent-protected overall design, widely used in various environments such as household, commercial and industrial.
Specification
Model code: X3 40/63A
Working voltage: 60-450V AC
Rated frequency: 45-60Hz
Rated current: 40A (Max 60A), 63A (Max 90A)
Password: 0000-9999 (Default 0000)
Power on delay time: 1-600S (Default 10S)
Over-voltage protection range: 230-300V (Default 255V) / 125-180V (Default 140V)
Over-voltage off delay time: 0.1-30.0S (Default 0.1S); >350V, <0.03S / >210S, <0.03S
Under-voltage protection range: 140-210V (Default 175V) / 80-105V (Default 90V)
Under-voltage off delay time: 0.1-30.0S (Default 0.1S); <120V, <0.03S / <70V, <0.03S
Over-current protection range: 0.1-40.0A (Default 32.0A), 0.1-63.0A (Default 50.0A)
Over-current off delay time: 0.1-30.0S (Default 0.1S); >5In or Imax, <0.03S
Continuous over-current off times: 1-99T (Default 3T)
Option: Wi-Fi, Bluetooth, Zigbee, etc.
Power consumption: <2VA
Electro-mechanical life: 100,000 cycles
Ambient temperature: -25°C-65°C
Altitude: <2000M
Wiring Diagram & Installation
Overall Dimensions
