Description

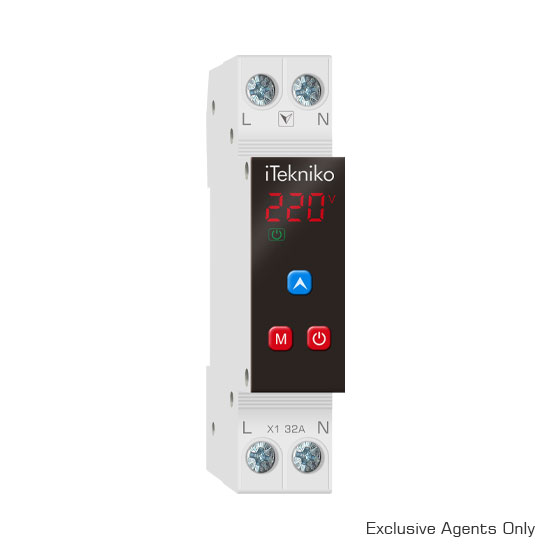

X1 series auto-reconnect adjustable voltage protector provides the protections of over-voltage, under-voltage and over-temperature, with the advantages of true RMS, steady-state circuit, long service life, wide application voltage, fast response speed, strong anti-interference ability (EMC passed), color digital display and adjustable parameters by adopting the advanced micro-controller and non-valotile memory, the powerful algorithm, the high-quality components and the patent-protected overall design, widely used in various environments such as household, commercial and industrial.

Specification

Model code: X1 32A

Working voltage: 60-450V AC

Rated frequency: 45-60Hz

Rated current: 32A (Max 50A)

Password: 000-999 (Default 000)

Power on delay time: 1-600S (Default 10S)

Over-voltage protection range: 230-300V (Default 255V) / 125-180V (Default 140V)

Over-voltage off delay time: 0.1-30.0S (Default 0.1S); >350V, <0.03S / >210S, <0.03S

Under-voltage protection range: 140-210V (Default 175V) / 80-105V (Default 90V)

Under-voltage off delay time: 0.1-30.0S (Default 0.1S); <120V, <0.03S / <70V, <0.03S

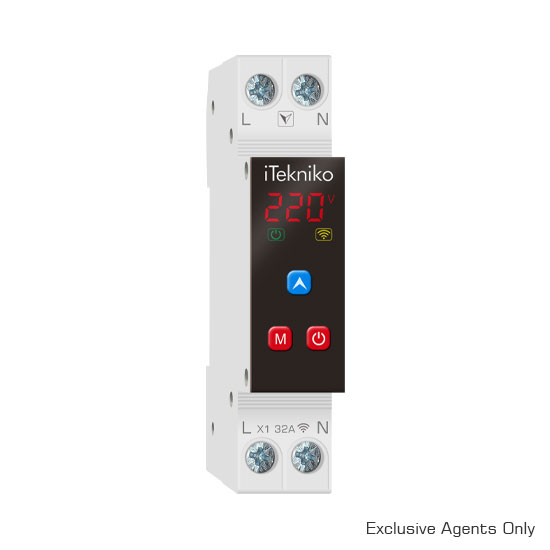

Option: Wi-Fi, Bluetooth, Zigbee, etc.

Power consumption: <2VA

Electro-mechanical life: 100,000 cycles

Ambient temperature: -25°C-65°C

Altitude: <2000M

Wiring Diagram & Installation

Overall Dimensions
