Description
X8 series electronic phase selective changeover switch is designed to supply an single-phase 110V or 220V load from the main power supply in order to maintain the stable uninterrupted power supply of essential single-phase load and protect it against the unallowed voltage variations in the main power supply.
According to the presence and quality of voltage in different phase, it will select the optimum phase and switch the single-phase load to this phase, with the advantages of true RMS, steady-state circuit, long service life, wide application voltage, fast response speed, strong anti-interference ability (EMC passed), color digital display and adjustable parameters by adopting the advanced micro-controller and non-valotile memory, the powerful algorithm, the high-quality components and the patent-protected overall design, widely used in various environments such as household, commercial and industrial.
Specification

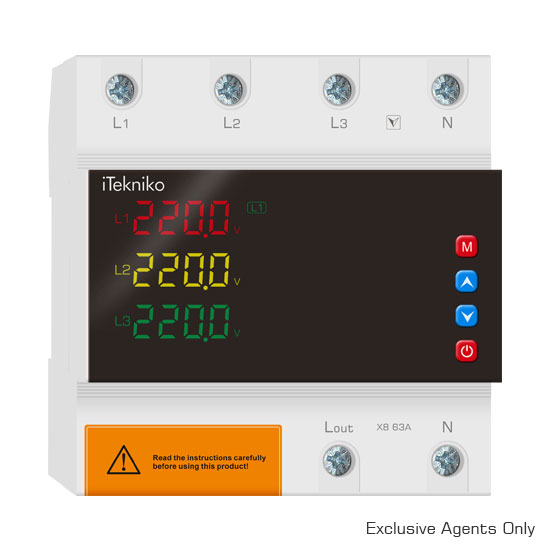

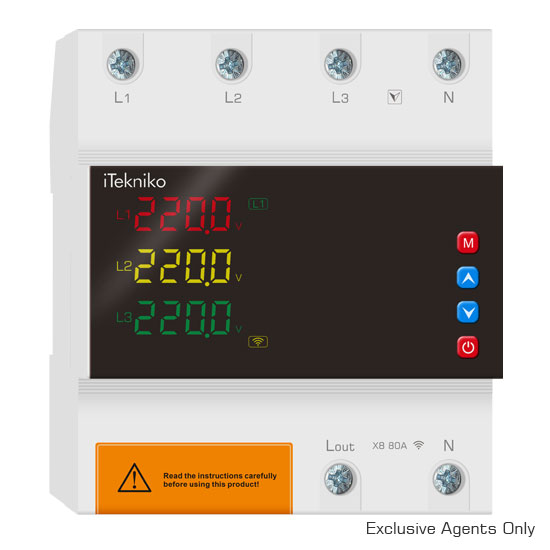

Model code: X8 63/80A
Working voltage: 60-450V(L-N), 110-780V(L-L) AC
Rated frequency: 45-60Hz
Rated current: 63A (Max 90A), 80A (Max 100A)
Password: 0000-9999 (Default 0000)
Power on delay time: 1-600S (Default 10S)
Over-voltage protection range: 230-300V (Default 255V) / 125-180V (Default 140V)
Under-voltage protection range: 140-210V (Default 175V) / 80-105V (Default 90V)
Delay time to switch to prior-phase: 1-600S-OFF (Default OFF)
Delay time to switch to reserve-phase: 0.1-30.0S (Default 0.1S)
Priority sequence: 123/132/213/231/312/321 (Default 123)
Option: Wi-Fi, Bluetooth, Zigbee, etc.
Power consumption: <2VA
Electro-mechanical life: 100,000 cycles
Ambient temperature: -25°C-65°C
Altitude: <2000M
Wiring Diagram & Installation
Overall Dimensions
